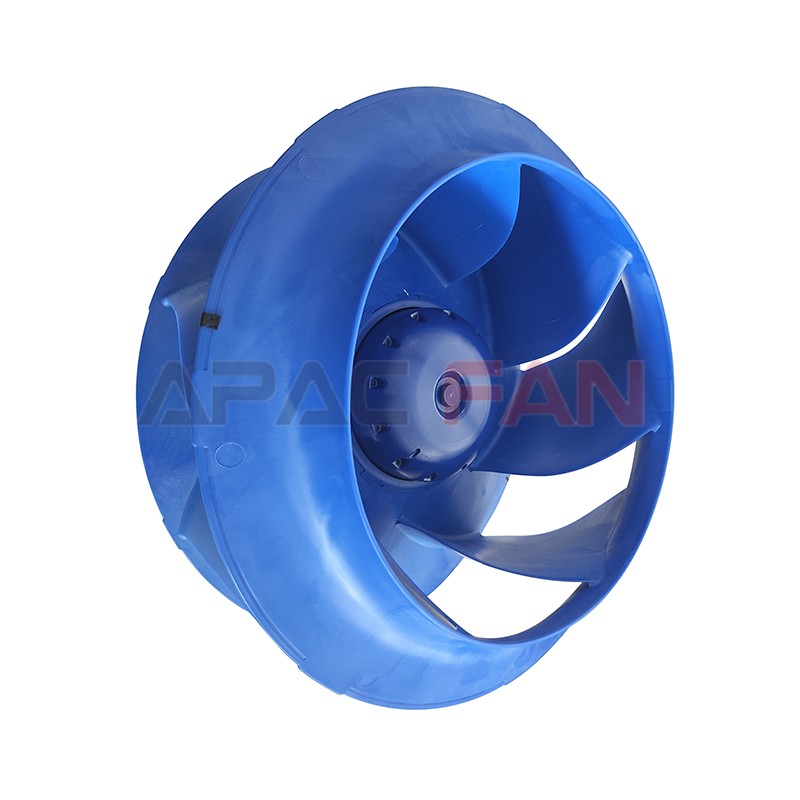

RH56V-ZIK.GL.VR 116763 ZIEHL-ABEGG Centrifugal Fan

Brand：

ZIEHL-ABEGG

Category：

Centrifugal Fan

Description：

Brand：ZIEHL-ABEGG
Part No：RH56V-ZIK.GL.VR 116763
Fan Type：Centrifugal Fan
Rated Voltage(V)：3~ 380-480
Size(mm)：560
Max.Air Flow(m³/h)：17400
Max.Pressure(Pa)：770
Input Power(W)：3500
Speed(rpm)：1550

00852-56261528 info@apacfan.com

Nominal data

Brand：

ZIEHL-ABEGG

Part No.：

RH56V-ZIK.GL.VR 116763

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

3~380-480

Size(mm)：

560

Max.Air Flow(m³/h)：

17400

Max.Pressure(Pa)：

770

Input Power(W)：

3500

Speed(rpm)：

1550

Noise(db)：

Description

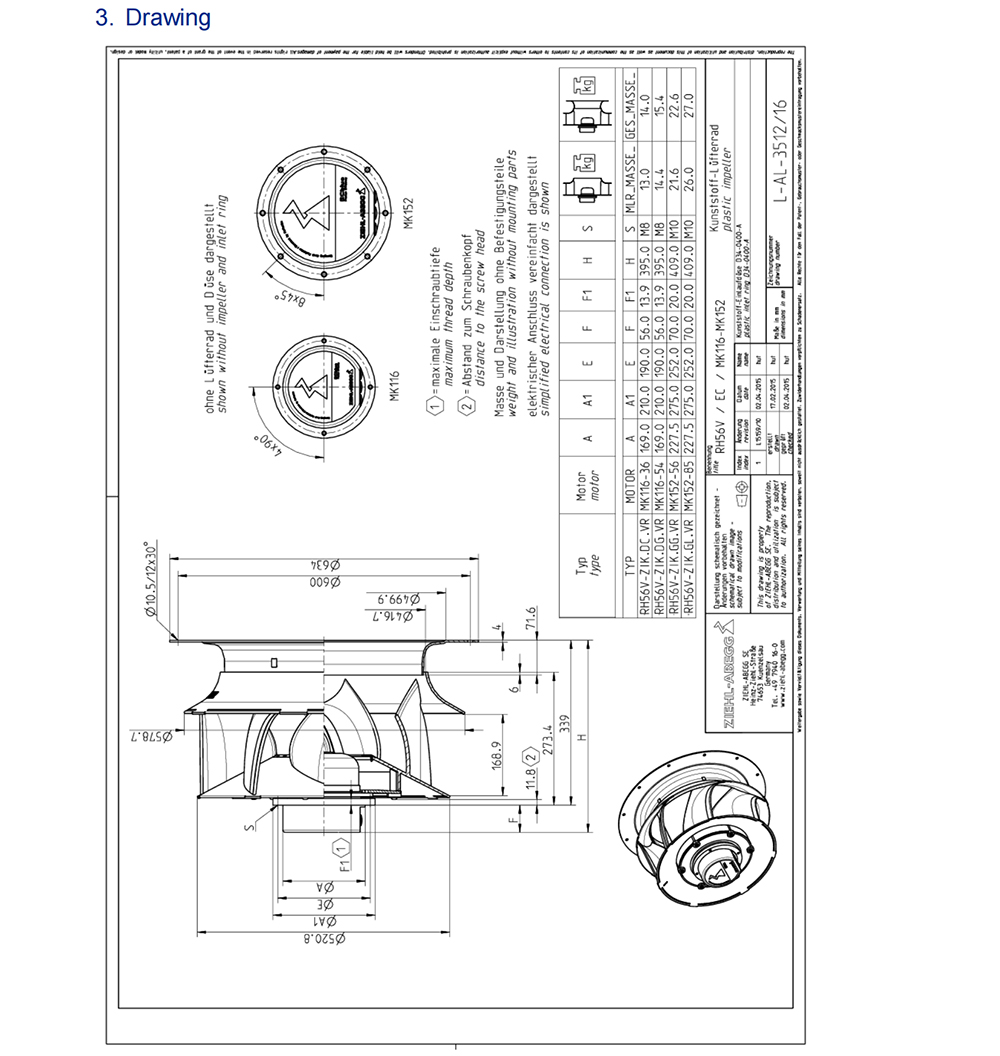

RH56V-ZIK.GL.VR 116763 Ziehl-abegg Specification drawing：
